Description

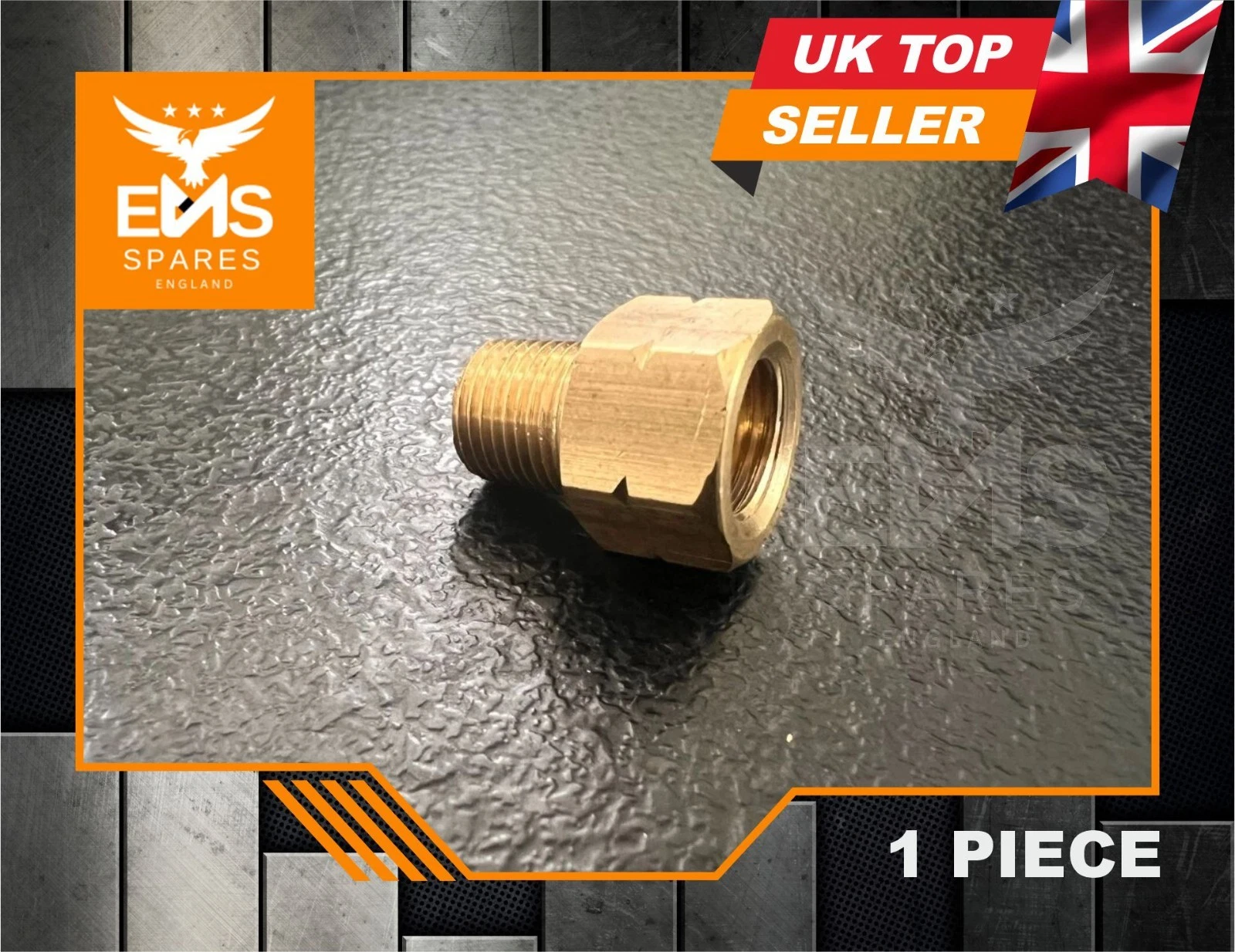

Brass Adaptor M10 x 1mm Female to 1/8″ NPT Male
Solid brass thread adaptor with an M10 x 1mm female thread and a 1/8″ NPT male taper thread. Commonly used to fit oil or brake pressure gauges, senders and switches, or to connect an M10 x 1 male fitting to a 1/8″ NPT port. Supplied by EMS Spares, Leicester – over 30 years in automotive components.
Specification
| Thread A | M10 x 1mm female |
|---|---|
| Thread B | 1/8″ NPT male (taper) |
| Type | Thread adaptor / reducer |
| Hex / spanner size | N/A |
| Material / finish | Solid brass, natural finish – rust resistant, will not seize |
| Interchange reference | HU101* |
| EMS part number | EMS-A101 |
* Reference numbers are for identification and cross-reference only. EMS Spares is an independent UK supplier and has no connection with the owners of these part numbers. All dimensions are approximate.
Buyer’s guide: brass thread adaptors explained
What does a thread adaptor do?
A brake adaptor converts one thread to another, so a pipe, hose, switch or gauge with one thread can connect to a port with a different thread – for example when fitting a new master cylinder, valve or gauge.
Step 1 – identify your thread (the most common mistake)
| Thread | Outside diameter (male part) | Threads | Typically found on |
|---|---|---|---|
| M10 x 1mm (this part) | 10mm approx | 1mm pitch (about 25 per inch) | Most European and Japanese cars, many later British cars and kit cars |
| M10 x 1.25mm | 10mm approx | 1.25mm pitch | Some older Italian and French cars (e.g. Fiat, Lancia) |
| 3/8″ x 24 UNF | 9.5mm approx | 24 per inch | Most British classics: MG, Triumph, Mini, Land Rover Series |
| M12 x 1mm | 12mm approx | 1mm pitch | Larger ports, some master cylinders and 1/4″ pipe |
Tip: Adaptors have two different threads – check both. M10 x 1 and 3/8″ UNF look almost the same, and M12 x 1 can be confused with 1/2″ UNF. Measure each thread and check the pitch with a thread gauge.
Step 2 – NPT taper thread
1/8″ NPT is a tapered pipe thread that seals on the thread itself. Use a suitable thread sealant on the NPT end only (never on brake flare seats).
How to fit – good practice
- Identify both threads before you order – measure each one and check the pitch.
- Start each thread by hand for several turns – it should turn freely. If it binds, stop and check the thread.
- Hold the adaptor with one spanner while you tighten the mating part with another, so it does not twist.
- Bleed the system and check every joint for leaks.
Safety: brakes are a safety-critical system. If you are not confident, have the work done or checked by a qualified mechanic.
Pack sizes

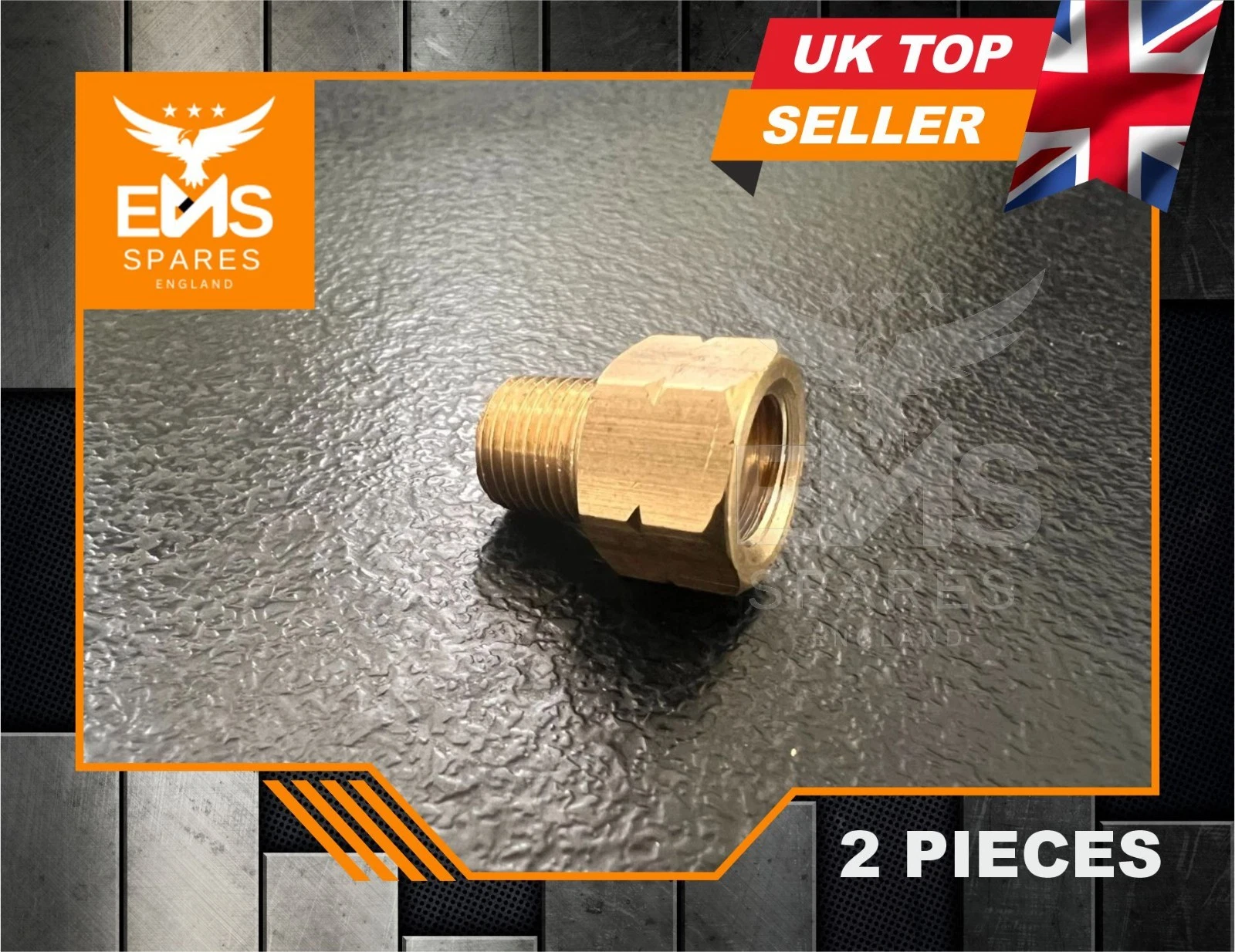

Available as 1 or 2 adaptors. Larger packs cost less per piece.
Delivery
Free UK delivery on every order (including Northern Ireland, Highlands & Islands). Same-day dispatch on orders placed before 10am.
Trusted by thousands of buyers on eBay
99.9% positive feedback from over 9,700 ratings, and 5.0 out of 5 for accurate description, postage cost, delivery time and communication (last 12 months). Read our eBay feedback.
FAQ
Is 1/8″ NPT the same as 1/8″ BSP? No. NPT has 27 threads per inch and a 60 degree thread; BSP has 28 and 55 degrees. They are not interchangeable.
Can I use it for an oil pressure gauge? Yes, where the gauge or port needs M10 x 1 female to 1/8″ NPT male.
Need help? Message us with your vehicle and the part you are connecting to and we will confirm the right fitting before you order.
